服务化治理（SOA）及DUBBO（二）实践干货

2016 年 3 月 24 日 jslfl javaEE, 未分类, 架构

服务化治理（SOA）及DUBBO（一）基础理论

DUBBO开发实践

基础环境准备

jdk7、tomcat、eclipse、maven

安装zookeeper

下载地址: http://www.apache.org/dist/zookeeper/
解压到安装目录,并装zoo_sample.cfg文件更名为zoo.cfg
编辑zoo.cfg中dataDir配置,修改数据存放位置
如dataDir=E:\\workspace_dubbo\\zookeeper-3.4.8\\data
双击zkServer.cmd启动注册中心服务（Linux 运行 zkServer.sh start ）

安装Dubbo管理控制台

dubbo-admin-2.5.3.war
下载地址:http://dubbo.io/Download-zh.htm

解压到tomcat的webapps/ROOT中

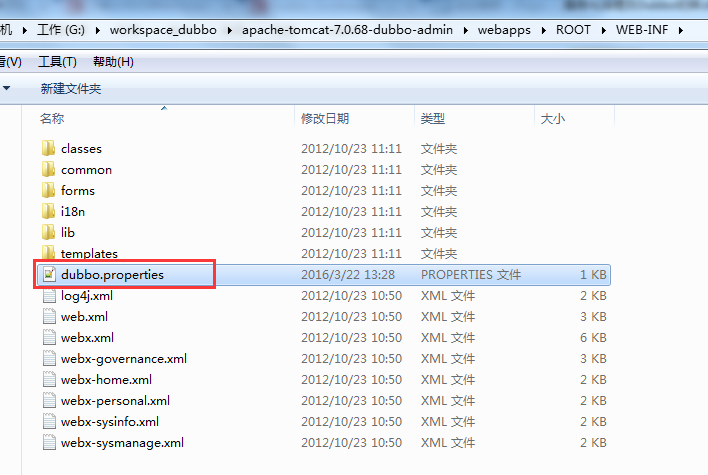

修改webapps/ROOT/WEB-INF中的 dubbo.properties文件，配置注册中心地址,我们使用上面安装的Zookeeper 的注册中心如:dubbo.registry.address=zookeeper://127.0.0.1:2181

访问http://localhost:8080/ROOT测试安装是否成功

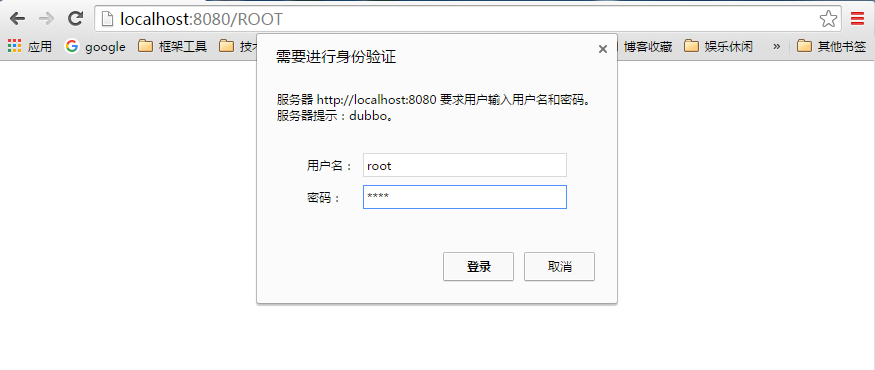

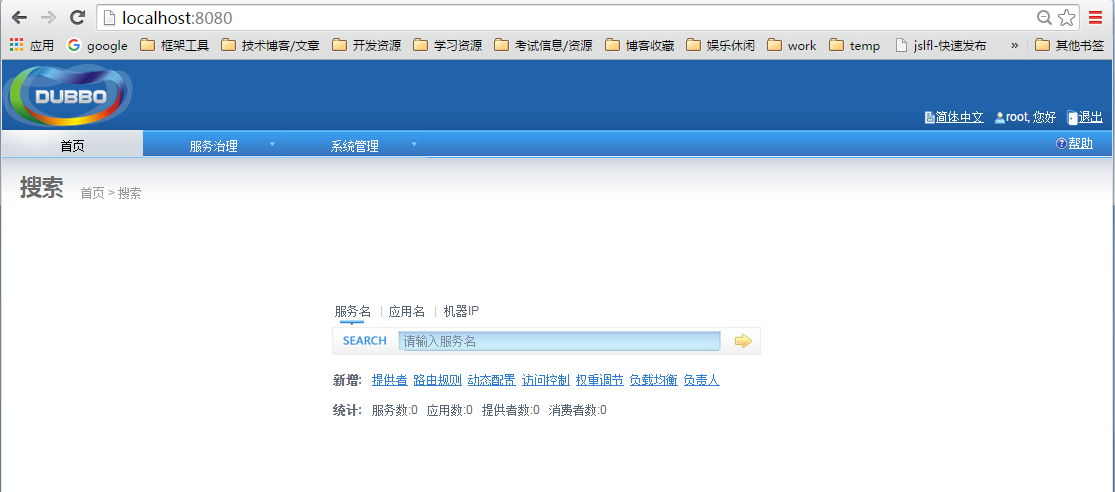

如果出现登陆窗口,说明dubbo控制台已安装成功,用root/root进入

代码组织

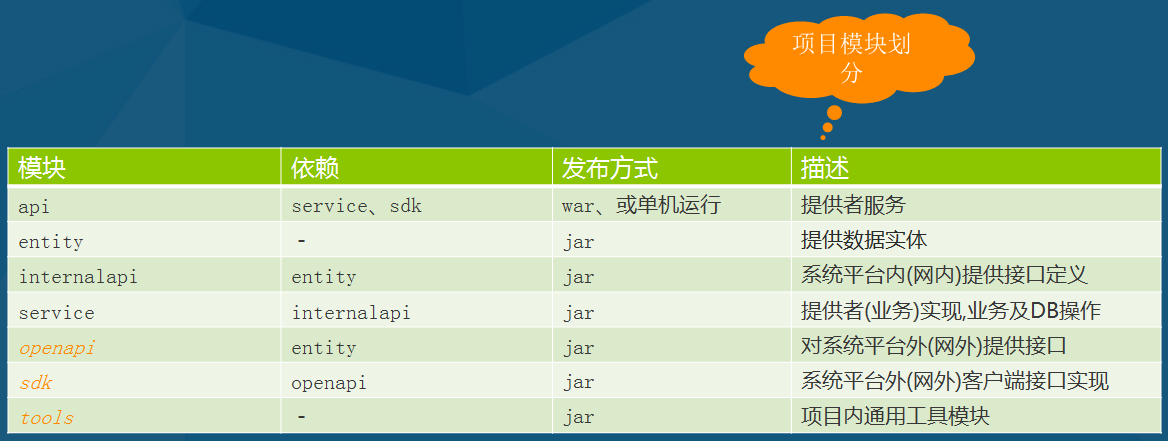

以微服务架构来组织代码，一个模块功能一个项目，一个项目又按上面的结构分层组织。
如用户基础服务和订单基础服务两个模块
用户服务
bs-account-api
bs-account-entity
bs-account-internalapi
bs-account-service
bs-account-openapi
bs-account-sdk
bs-tools
订单服务
bs-order-api
bs-order-entity
bs-order-internalapi
bs-order-service

基础服务下的各个服务模块可以共享bs-tools

提供者开发

新建Maven工程dubbo_demo_root,作为其它模块的父项目，方便后面做一些统一配置
pom.xml内容

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>dubbo_demo</groupId>
<artifactId>dubbo_demo_root</artifactId>
<version>0.0.1-SNAPSHOT</version>
<name>dubbo_demo_root</name>
<description>dubbo_demo_root</description>
<packaging>pom</packaging>

<modules>
<module>dubbo_demo_api</module>
<module>dubbo_demo_entity</module>
<module>dubbo_demo_internalapi</module>
<module>dubbo_demo_service</module>
<module>dubbo_demo_client</module>
</modules>
</project>

新建Maven工程dubbo_demo_entity
pom.xml内容

1
2
3
4
5
6
7
8
9
10
11

新建实体类User

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

package cn.jslfl.demo.dubbo.entity;

import java.io.Serializable;

public class User implements Serializable{
private static final long serialVersionUID = 5144095165528387447L;
private String userName;
private int age;
public String getUserName() {
return userName;
}
public void setUserName(String userName) {
this.userName = userName;
}
public int getAge() {
return age;
}
public void setAge(int age) {
this.age = age;
}

public String toString(){
return "{"
+ "userName:" + userName + ","
+ "age:" + age + ","
+"}";
}
}

实体必须要实现序列化接口

新建Maven工程dubbo_demo_internalapi
pom中加入依赖dubbo_demo_entity
pom.xml内容

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

新建接口IUserService

1
2
3
4
5
6
7
8
9

package cn.jslfl.demo.dubbo.interalapi;

import cn.jslfl.demo.dubbo.entity.User;

public interface IUserService {
public String hello(String name);

public String getUserInfo(User user);
}

新建Maven工程dubbo_demo_service
pom中加入依赖dubbo_demo_internalapi以及junit、dubbo、zookeeper、zkclient
pom.xml内容

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>dubbo_demo</groupId>
<artifactId>dubbo_demo_root</artifactId>
<version>0.0.1-SNAPSHOT</version>
</parent>
<artifactId>dubbo_demo_service</artifactId>
<name>dubbo_demo_service</name>

<dependencies>
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>4.11</version>
<scope>test</scope>
</dependency>


<dependency>
<groupId>dubbo_demo</groupId>
<artifactId>dubbo_demo_internalapi</artifactId>
<version>0.0.1-SNAPSHOT</version>
</dependency>


<dependency>
<groupId>com.alibaba</groupId>
<artifactId>dubbo</artifactId>
<version>2.5.3</version>
</dependency>


<dependency>
<groupId>org.apache.zookeeper</groupId>
<artifactId>zookeeper</artifactId>
<version>3.4.8</version>
</dependency>


<dependency>
<groupId>com.github.sgroschupf</groupId>
<artifactId>zkclient</artifactId>
<version>0.1</version>
</dependency>

</dependencies>
</project>

开发接口实现类UserServiceImpl

1
2
3
4
5
6
7
8
9
10
11
12
13
14

package cn.jslfl.demo.dubbo.service;

import cn.jslfl.demo.dubbo.entity.User;
import cn.jslfl.demo.dubbo.interalapi.IUserService;

public class UserServiceImpl implements IUserService {
public String hello(String name){
return "Hi! " + name + ",你好.";
}

public String getUserInfo(User user) {
return user.toString();
}
}

新建Maven工程dubbo_demo_api
pom中加入依赖dubbo_demo_service以及spring-web、javax.servlet-api
pom.xml内容

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

resources下新建dubbo provider配置文本spring-dubbo-provider.xml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:dubbo="http://code.alibabatech.com/schema/dubbo"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://code.alibabatech.com/schema/dubbo
http://code.alibabatech.com/schema/dubbo/dubbo.xsd">


<dubbo:application name="dubbo-provider-demo" />


<dubbo:registry address="zookeeper://127.0.0.1:2181" />


<dubbo:protocol name="dubbo" port="20880" />


<dubbo:service interface="cn.jslfl.demo.dubbo.interalapi.IUserService" ref="userService" />


<bean id="userService" class="cn.jslfl.demo.dubbo.service.UserServiceImpl" />

</beans>

新建dubbo启动程序DubboServerApplication

1
2
3
4
5
6
7
8
9
10
11
12
13

package cn.jslfl.demo.dubbo.server;

import org.springframework.context.support.ClassPathXmlApplicationContext;

public class DubboServerApplication {
public static void main(String[] args) throws Exception {

ClassPathXmlApplicationContext context = new ClassPathXmlApplicationContext(new String[] {"spring-dubbo-provider.xml"});
context.start();
System.out.println("provider started...");
System.in.read();//任意键退出
}
}

运行DubboServerApplication

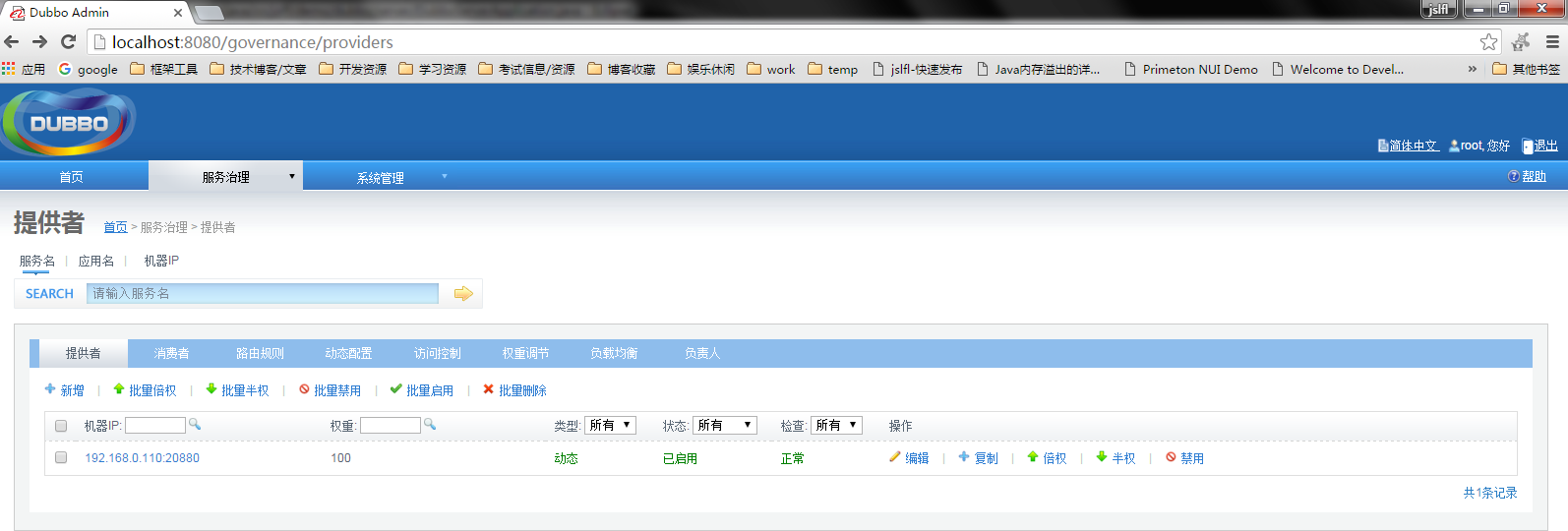

dubbo管理平台中可以查到提供者

消费者开发

新建Maven工程dubbo_demo_client
依赖同dubbo_demo_service相同
pom.xml内容

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>

<parent>
<groupId>dubbo_demo</groupId>
<artifactId>dubbo_demo_root</artifactId>
<version>0.0.1-SNAPSHOT</version>
</parent>

<artifactId>dubbo_demo_client</artifactId>
<packaging>war</packaging>
<description>dubbo consumer test</description>

<dependencies>
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>4.11</version>
<scope>test</scope>
</dependency>


<dependency>
<groupId>dubbo_demo</groupId>
<artifactId>dubbo_demo_internalapi</artifactId>
<version>0.0.1-SNAPSHOT</version>
</dependency>


<dependency>
<groupId>com.alibaba</groupId>
<artifactId>dubbo</artifactId>
<version>2.5.3</version>
</dependency>


<dependency>
<groupId>org.apache.zookeeper</groupId>
<artifactId>zookeeper</artifactId>
<version>3.4.8</version>
</dependency>


<dependency>
<groupId>com.github.sgroschupf</groupId>
<artifactId>zkclient</artifactId>
<version>0.1</version>
</dependency>

<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-web</artifactId>
<version>4.0.6.RELEASE</version>
</dependency>

<dependency>
<groupId>javax.servlet</groupId>
<artifactId>javax.servlet-api</artifactId>
<version>3.1.0</version>
</dependency>

</dependencies>
</project>

resources下新建dubbo consumer配置文件spring-dubbo-consumer.xml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:dubbo="http://code.alibabatech.com/schema/dubbo"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://code.alibabatech.com/schema/dubbo
http://code.alibabatech.com/schema/dubbo/dubbo.xsd">


<dubbo:application name="dubbo-consumer-demo" />


<dubbo:registry address="zookeeper://127.0.0.1:2181" />


<dubbo:protocol name="dubbo" port="20880" />



<dubbo:reference id="userService" interface="cn.jslfl.demo.dubbo.interalapi.IUserService" />
</beans>

新建测试类UserClientTest，通过消费者远程调用提供者服务

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

package cn.jslfl.demo.dubbo.client;

import org.springframework.context.support.ClassPathXmlApplicationContext;

import cn.jslfl.demo.dubbo.entity.User;
import cn.jslfl.demo.dubbo.interalapi.IUserService;

/**
* 非WEB应用方式调用测试
*
* @author
*
*/
public class UserClientTest {
public static void main(String[] args) throws Exception {
ClassPathXmlApplicationContext context = new ClassPathXmlApplicationContext( new String[]{"spring-dubbo-consumer.xml"});

IUserService demoService = (IUserService) context.getBean("userService"); //

System.out.println(demoService.hello("张三")); //
User user = new User();
user.setAge(22);
user.setUserName("李四");
System.out.println(demoService.getUserInfo(user)); //
}
}

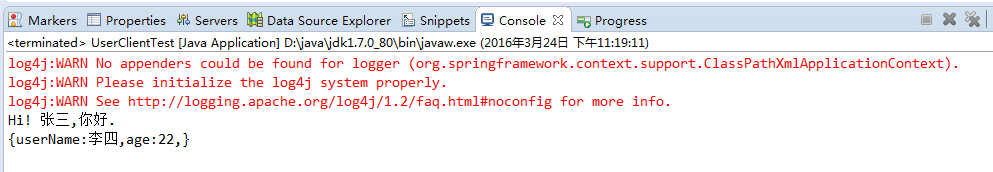

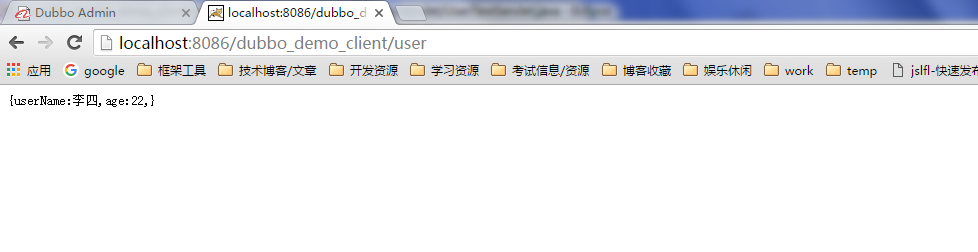

运行测试UserClientTest结果

至此，提供者与消费者开发完成

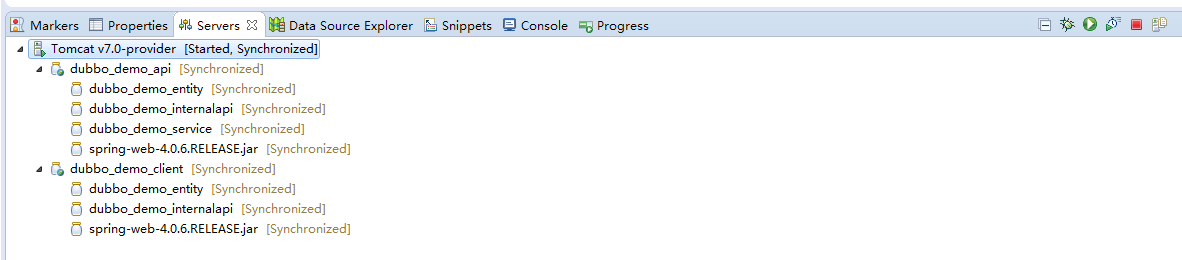

提供者与消费者也可以通过web容器如tomcat来启动,只需在web.xml中启动spring时分别加载上spring-dubbo-provider.xml、spring-dubbo-consumer.xml即可。

dubbo_demo_api工程src\main\webapp\WEB-INF\web.xml内容

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

<!DOCTYPE web-app PUBLIC
"-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN"
"http://java.sun.com/dtd/web-app_2_3.dtd" >

<web-app>
<display-name>dubbo demo Web App</display-name>

<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>
classpath:spring-dubbo-provider.xml
</param-value>
</context-param>

<listener>
<listener-class>org.springframework.web.context.ContextLoaderListener
</listener-class>
</listener>
</web-app>

dubbo_demo_client

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

<!DOCTYPE web-app PUBLIC
"-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN"
"http://java.sun.com/dtd/web-app_2_3.dtd" >

<web-app>
<display-name>dubbo demo Client Web</display-name>

<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>
classpath:spring-dubbo-consumer.xml
</param-value>
</context-param>

<listener>
<listener-class>org.springframework.web.context.ContextLoaderListener
</listener-class>
</listener>

<servlet>
<servlet-name>UserTestServlet</servlet-name>
<servlet-class>cn.jslfl.demo.dubbo.servlet.UserTestServlet</servlet-class>
</servlet>
<servlet-mapping>
<servlet-name>UserTestServlet</servlet-name>
<url-pattern>/user</url-pattern>
</servlet-mapping>
</web-app>

创建UserTestServlet进行消费者调用

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51

package cn.jslfl.demo.dubbo.servlet;

import java.io.IOException;
import java.io.Writer;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.springframework.web.context.WebApplicationContext;
import org.springframework.web.context.support.WebApplicationContextUtils;

import cn.jslfl.demo.dubbo.entity.User;
import cn.jslfl.demo.dubbo.interalapi.IUserService;

/**
* 普通WEB方式调用
* @author
*
*/
public class UserTestServlet extends HttpServlet{

private static final long serialVersionUID = 8537346452515534864L;

@Override
protected void doGet(HttpServletRequest req, HttpServletResponse resp)
throws ServletException, IOException {
doPost(req, resp);
}

@Override
protected void doPost(HttpServletRequest req, HttpServletResponse resp)
throws ServletException, IOException {
WebApplicationContext context = WebApplicationContextUtils.getWebApplicationContext(req.getServletContext());

IUserService demoService = (IUserService) context.getBean("userService"); //

System.out.println(demoService.hello("张三")); //
User user = new User();
user.setAge(22);
user.setUserName("李四");

resp.setCharacterEncoding("GBK");
Writer out = resp.getWriter();
out.write(demoService.getUserInfo(user)); //
out.flush();
out.close();
}

}

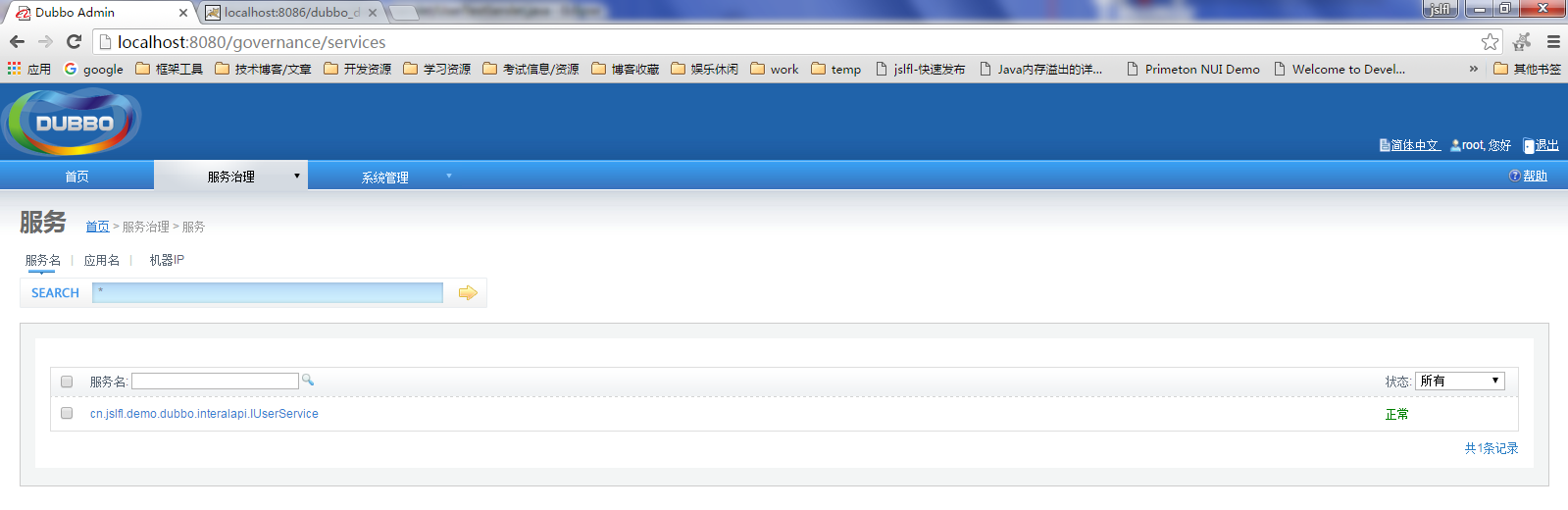

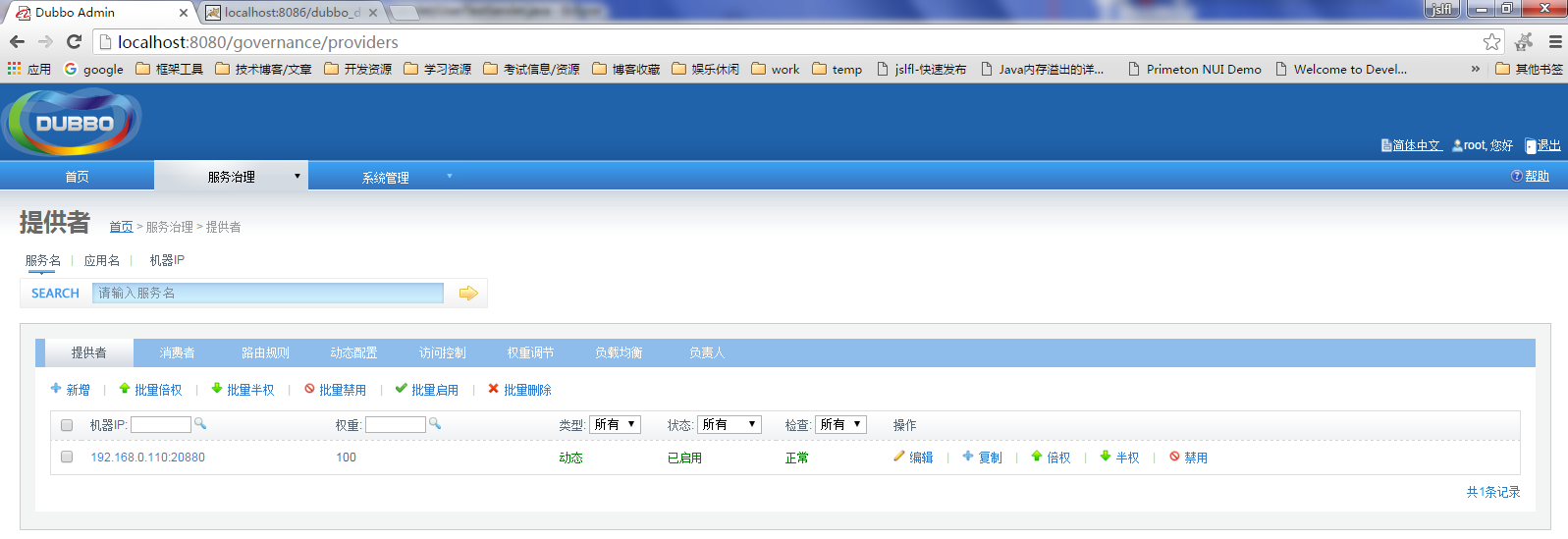

把dubbo_demo_api和dubbo_demo_client发布到tomcat中并启动服务器

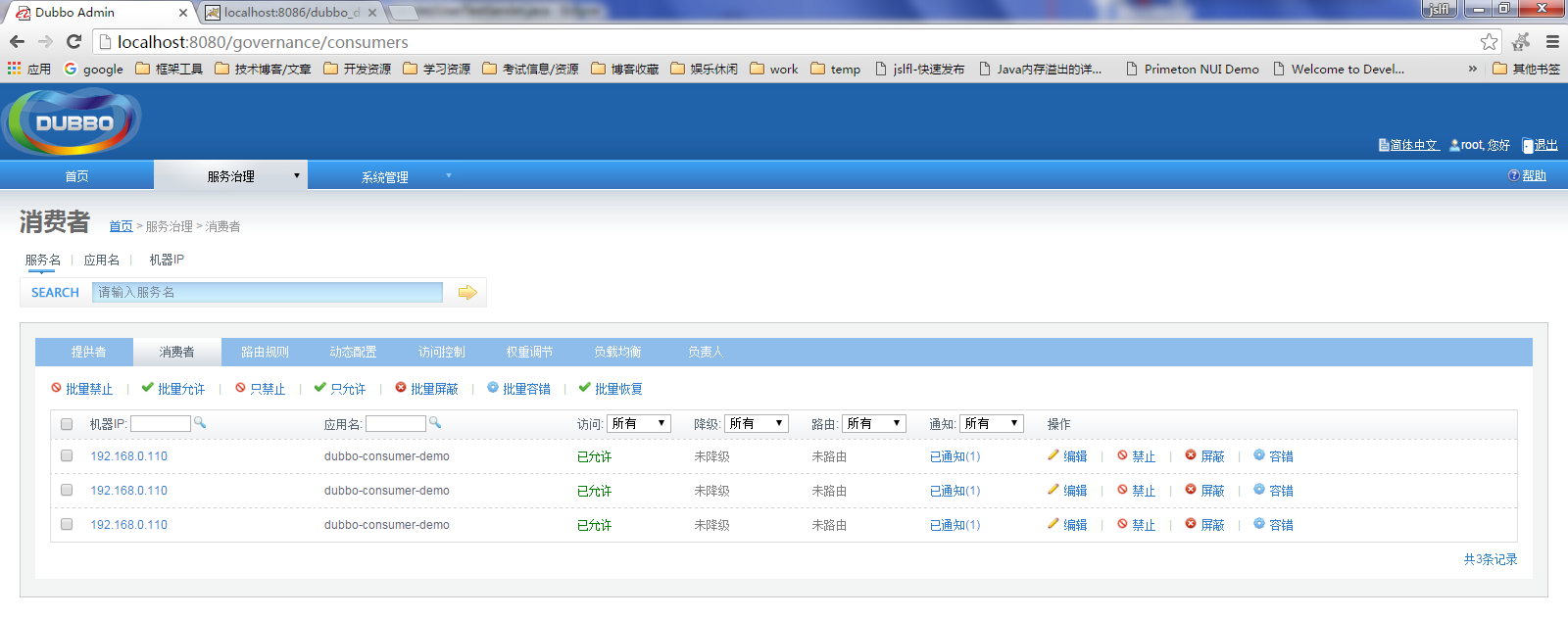

访问servlet测试

源码下载
maven工程导入dubbo_demo_root
链接：http://pan.baidu.com/s/1slA9JQ1 密码：mppb

java, rpc

Comments are currently closed.

服务化治理（SOA）及DUBBO（二）实践干货

DUBBO开发实践

基础环境准备

安装zookeeper

安装Dubbo管理控制台

代码组织

提供者开发

消费者开发

近期文章

近期评论

文章归档

分类目录

标签
